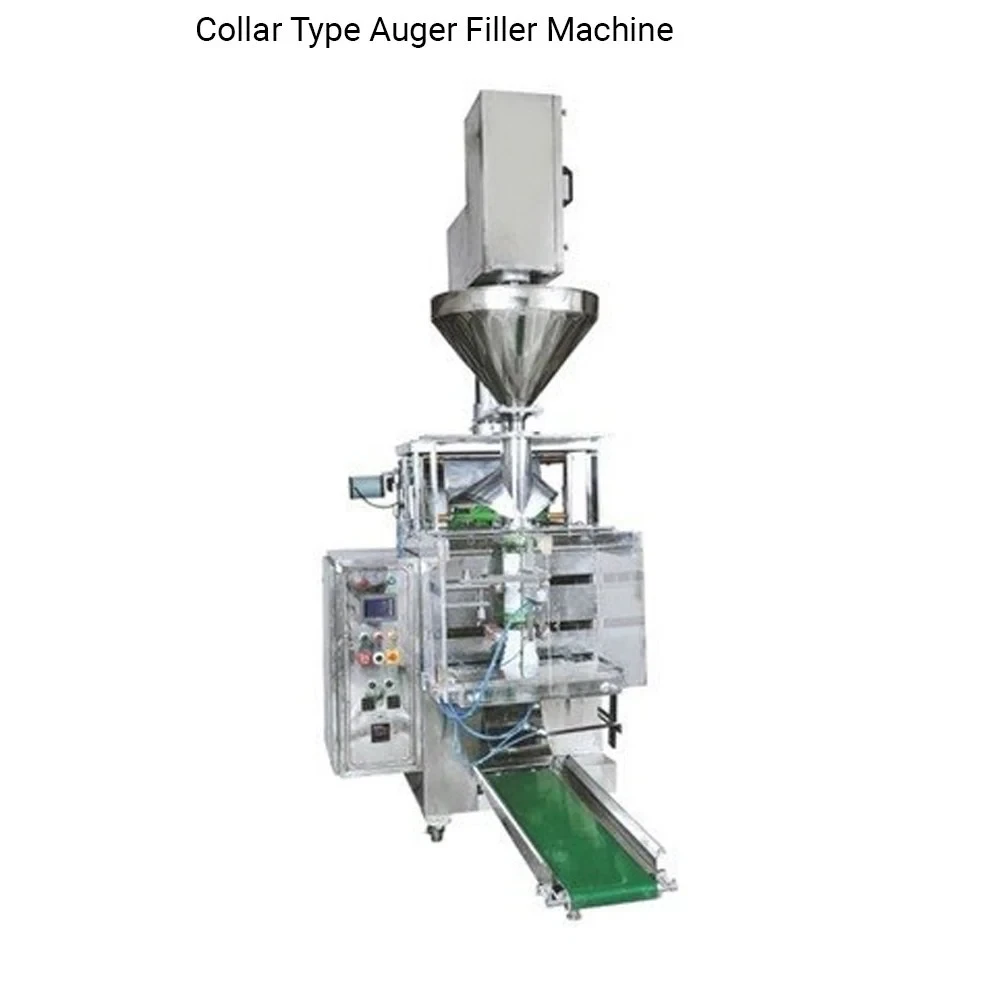

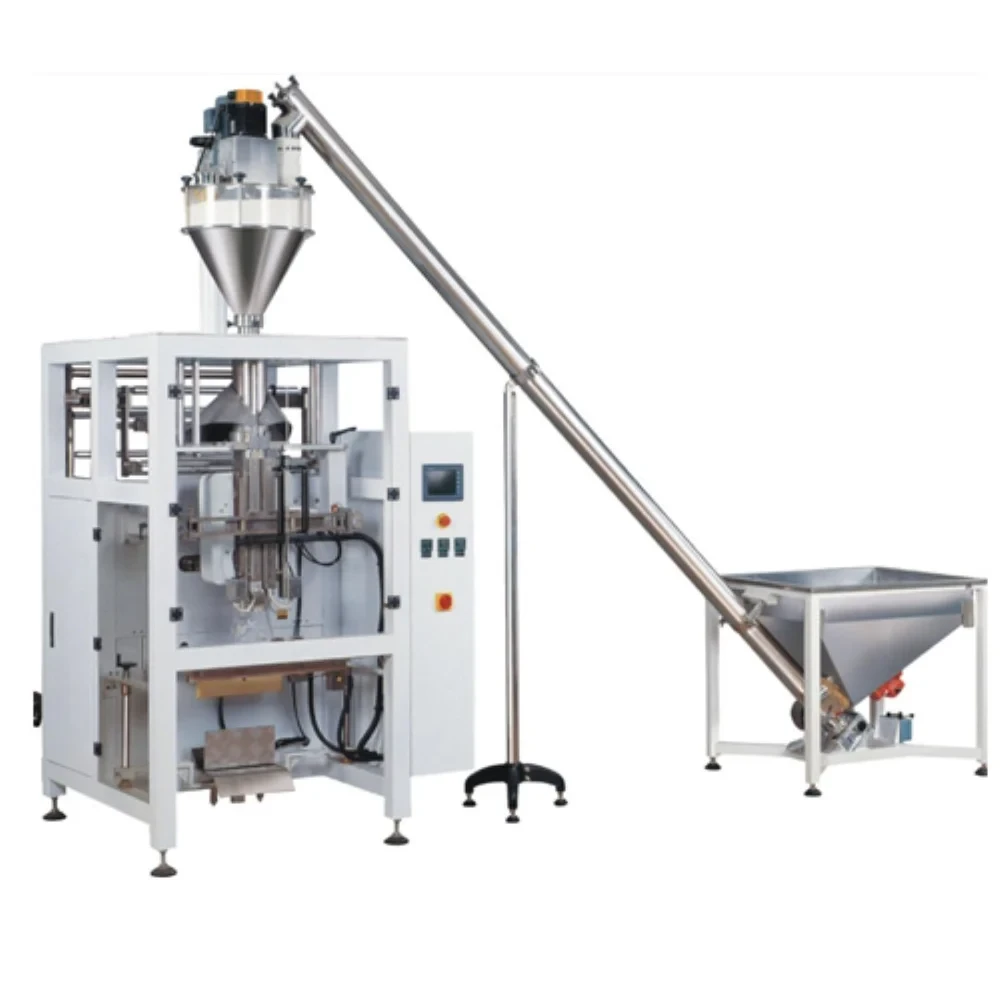

Automatic Collar Type Pouch Packing Machine

Automatic Collar Type Pouch Packing Machine

0 Orders 0 Wish listed

₹620,000.00 ₹496,000.00

Qty

Total price:

₹620,000.00

Overview
Reviews

Detail Description

ParameterSpecification
Machine Type	Automatic Collar Type Pouch Packing Machine
Packaging Style	Center Seal / Pillow Pouch
Pouch Length	50 – 300 mm (Adjustable)
Pouch Width	40 – 200 mm
Filling Range	5 g – 1 kg (Depends on product & auger/cup)
Packing Speed	20 – 60 pouches per minute
Film Width	100 – 420 mm
Film Thickness	40 – 100 microns
Sealing Type	Vertical & Horizontal Heat Sealing
Temperature Control	Digital PID Temperature Controller
Drive System	AC Motor with Gearbox / Servo (Optional)
Control System	PLC with HMI Touch Screen
Sensor	Photoelectric Sensor for Print Mark
Power Supply	220V AC, 50 Hz, Single Phase
Power Consumption	2 – 3 kW
Air Consumption	6–8 CFM @ 6 bar (If pneumatic system used)
Material of Construction	SS 304 Contact Parts / MS Powder Coated Body
Product Type	Granules / Powder / Snacks / Namkeen (as per filler)
Hopper Capacity	20 – 40 Liters
Machine Dimensions (L×W×H)	Approx. 1000 × 800 × 1800 mm
Machine Weight	Approx. 350 – 500 kg
Safety Features	Emergency Stop, Safety Guards
Optional Accessories	Date Coder, Nitrogen Flushing, Servo Pulling Belt
